SPESIFIKASI

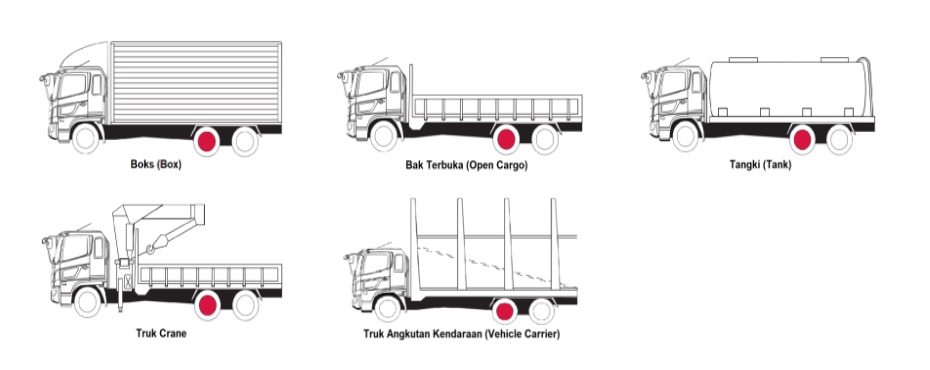

Karoseri :
SPESIFIKASI
Karoseri :
Performa :
| Kecepatan Maksimum | (Km/h) | 85 |
| Daya Tanjak | (tan %) | 53 |
Model Mesin :
| Model | – | J08E-WD |
| Model Tipe | – | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | JIS Gross (PS/rpm) | 285/2.500 |
| Daya maksimum | JIS Gross (Kgm/rpm) | 85/1.500 |
| Tenaga Maksimum | ISO-NET (PS/rpm) | 280/2.500 |
| Daya maksimum | ISO-NET (Kgm/rpm) | 84/1.500 |
| Jumlah silinder | – | 6 |
| Diameter x Langkah Piston | mm | 112 x 130 |
| Isi Silinder | cc | 7,684 |
Kopling :
| Tipe | – | Pelat Kering Tunggal, dengan Coil Spring |
| Diameter Cakram | (mm) | 380 |
Transmisi :
| Tipe | – | M009DD |
| C | – | 14,056 |
| Ke-1 | – | 9,647 |
| Ke-2 | – | 6,993 |
| Ke-3 | – | 5,021 |
| Ke-4 | – | 3,636 |
| Ke-5 | – | 2,653 |
| Ke-6 | – | 1,923 |
| Ke-7 | – | 1,380 |
| Ke-8 | – | 1,000 |
| Mundur | – | 1,3636 |
Kemudi :
| Tipe | – | Integral Power Steering |
| Minimal Radius Putar | (mm) | 9,5 |
Sumbu :
| Depan | – | Reverse Elliot, I-Section Beam |
| Belakang | – | Full Floating Type Hypoid Gear |
| Perbandingan Gigi Akhir | – | 5,857 |
Rem :
| Rem Utama | – | Full Air dengan Sirkuit Ganda |
| Rem Pelambat | – | Terletak pada Pipa Gas Buang |
| Rem Parkir | – | Spring Brake |
Roda & BAn :
| Ukuran Rim | – | 20X7.50V-165 |
| Ukuran Ban | – | 11.00-20-16PR |
| Jumlah Ban | – | 10 + 1(Cadangan) |
Sistem Listrik Accu :
| Accu | – | 12V-65AH×2 |
Tangki Solar :
| Kapasitas | (L) | 200 |
| Jarak Sumbu Roda | WB (mm) | 4.930+1.350 |
| Total Panjang | OL (mm) | 9.950 |
| Total Lebar | OW (mm) | 2.490 |
| Total Tinggi | OH (mm) | 2.770 |
| Lebar Jejak Depan | FR Tr (mm) | 2.050 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.860 |
| Julur Depan | FOH (mm) | 1.280 |
| Julur Belakang | ROH (mm) | 2.390 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 4.775 |
Suspensi :
| Depan | – | Rigid Axle dengan Pegas Daun Semi Elliptic |
| Belakang | – | Tipe Suspensi Trunnion, Rigid Axle dengan Pegas Daun Semi Elliptic |
Berat Chassis :
| Berat Kosong | (kg) | 7,280 |
| Berat Total Kendaraan | (kg) | 26.000 |
